An Introduction to RF Power Amplifiers in Cellular Networks

At the heart of our mobile-powered society lies an intricate infrastructure system, orchestrating a symphony of reliable wireless access many of us take for granted.

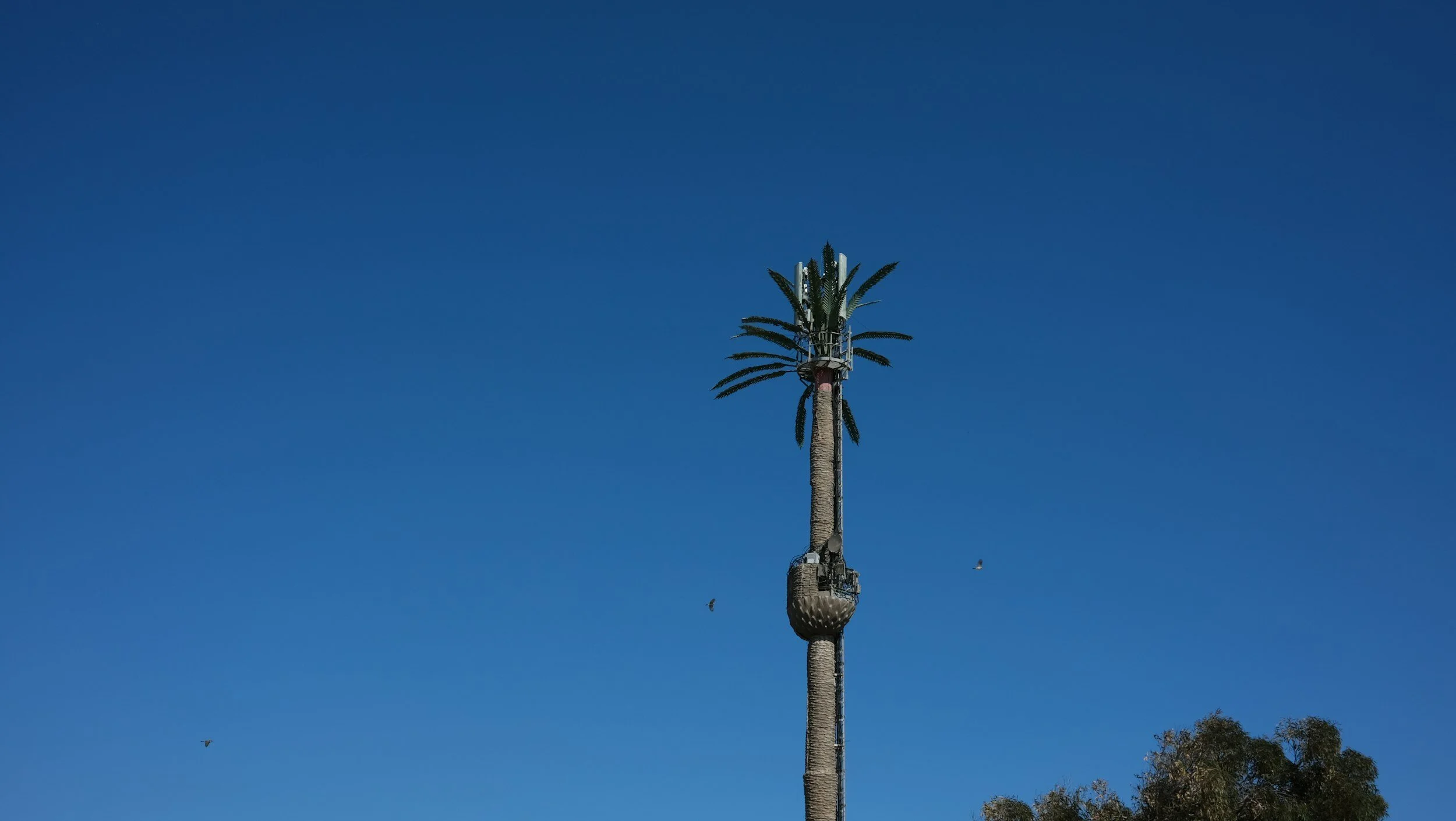

Cellular networks depend on immense towers dotted across the terrain, transmitting and receiving the signals connecting us at work, home, and everywhere in between.

These towering base stations house racks of specialised equipment to modulate, process, and amplify the waveforms carrying our favourite playlists, video calls, app data and more across airwave highways. It's a modern marvel linking millions that can't function without each component intelligently performing its role.

Among the key elements inside these roadside tech temples are RF power amplifiers - compact, unassuming modules with an outsized impact.

RF power amplifiers take the modulated signal at transmit power levels of a few watts and skillfully amplify them to tens or hundreds of watts without introducing distortions.

This intense signal amplification enables propagation for miles to reach every user device within the cell area reliably.

The powerful amplified transmission finally escapes via coaxial feed lines to the antenna arrays perceptible from a distance. The elevated antennas beamform the heightened signal across the intended coverage zone.

Without advanced power amplification, transmissions would fail to escape the shadow of the towers themselves - unable to ignite widespread mobile connectivity as users roamed out of range.

So, while they avoid the limelight high atop their perches, RF power amplifiers enable the anytime access and instant interactions we've come to depend on from our device companions.

But how do they do it?

Here, we'll illuminate critical capabilities that allow these remarkable components to drive wireless advancement behind the scenes.

What is an RF Power Amplifier?

An RF (radio frequency) power amplifier is a device designed to increase the power of an input radio frequency signal while maintaining the signal's fundamental characteristics as it passes through the amplifier circuitry.

In essence, it takes a lower power RF signal at its input. Then, it produces a significantly higher power version of that same signal at its output, with minimal distortion of the signal's defining properties.

Think of an RF signal as a voice speaking at a certain loudness level. The voice carries rich information - not just the words being said, but nuances like tone and volume changes.

Now, imagine the speaker wants to deliver their message to a large stadium full of people. They could try shouting as loud as possible, but that would strain and distort their voice, losing much of the original nuance and meaning.

Instead, they use powerful amplifiers and massive directional speakers designed not simply to make the voice louder but to carry the exact same voice with all its original characteristics clearly to the entire audience.

An RF power amplifier works the same way - it boosts the "loudness" of a radio signal containing data or voice information to transmit cleanly over long distances.

The amplification allows signals to be transmitted from cellular base station locations by boosting power levels precisely without changing the signal properties - like giving a speech to a stadium via perfectly tuned speakers!

Some key characteristics and specifications of RF power amplifiers include:

- Frequency Range: The band or bands of radio frequencies that the amplifier can faithfully operate within, such as cellular bands ranging from 700 MHz to 2.7 GHz.

- Linearity: How precisely it can amplify the input over a dynamic range without adding harmonic distortions. High linearity is required for complex modulated signals.

- Gain: The level of power gain it provides, such as +40 dBm, indicating a 100x power increase.

- Efficiency: The ratio of RF output power to DC input power. Important for power consumption.

- Output Power: The maximum RF power capability it can produce while maintaining linearity. Often ranging from tens to hundreds of watts.

- Architecture: The active device technology it uses, such as LDMOS, GaN, GaAs, or MMIC. This impacts frequency, efficiency and cost.

The Role of RF Power Amplifiers in Cellular Networks

RF power amplifiers are critical in enabling modern cellular networks to function reliably. They are found in base station transmitters and serve to boost the power of RF signals to levels that enable coverage of entire geographic cell areas - often several miles across.

Without these specialised amplifiers, transmission electronics' relatively low power levels would only allow signal propagation over a few hundred feet at most. That would make cellular networks completely unviable.

The high-power amplified transmit signal from base stations enables our mobile phones to connect even when we are miles away from the nearest cell tower. RF power amplifiers enable stable connections for voice, data, video and other applications.

There are different classes and specifications of RF power amplifiers used in cellular networks based on tradeoffs between linearity and power efficiency.

High linearity ensures clean signal amplification without introducing distortions, vital for complex modulated signals used in standards like 4G LTE. Greater efficiency reduces electricity consumption but may compromise linearity.

Cell towers serving urban areas may optimise linearity to preserve signal quality for many users. In contrast, rural towers may utilise more power-efficient but less linear amplifiers since coverage distance is a higher priority than bandwidth.

So without advanced power amplification technology that can produce RF signals reaching nearly 100 watts, our modern mobile-connected world simply wouldn't be possible.

Key Specifications and Types of RF Power Amplifiers

There are a few key specifications and technology types that characterise RF power amplifiers used in cellular networks:

Frequency Bands Supported

RF power amplifiers are designed to faithfully operate within specific frequencies or bands of frequencies. Cellular bands range from as low as 700 MHz up to 2.7 GHz today. Models must maintain linear amplification across their stated band ranges.

Output Power - Watts Levels

The amplifier's maximum output power capability is a major differentiating factor while preserving signal integrity. Cellular base station amplifiers often range from 20W to 80W, some exceeding 100W. Higher power directly correlates to greater cellular range.

Architectures: LDMOS, GaN, GaAs

The active device technology determines much about the amplifier's performance. Some top options include laterally-diffused metal oxide semiconductor (LDMOS) transistors, gallium nitride (GaN) transistors, and gallium arsenide (GaAs) semiconductors. These impact cost, frequency versatility, linearity, efficiency and reliability. For example, While LDMOS is a high-voltage, wide-bandgap semiconductor, GaAs operate at a lower power threshold of 10 to 12 V.

Leading Models

Top RF power amplifier manufacturers serving the cellular industry include Qorvo, Anadigics, Wolfspeed, NXP Semiconductors, Analog Devices and MACOM. Major infrastructure providers like Ericsson, Nokia and Huawei integrate components from these companies into supplied base stations.

As networks move to 5G, new high-performance power amplifiers emerge, targeting frequencies like 28 GHz or 39 GHz. They offer much greater bandwidth potential compared to legacy bands. That drives innovation in existing semiconductor technologies and new wide bandgap materials.

Considerations for RF Power Amplifiers in Cellular Networks

When designing RF power amplifiers for cellular infrastructure, engineers must consider several key factors to ensure optimal performance within regulatory requirements.

A core consideration is enabling sufficient linearity across the supported frequency bands. That prevents distortion of the modulated signals and maintains voice/data integrity.

After all, we expect our phone calls to have consistently high quality anywhere in the coverage zone!

Another priority is efficiency, even at high output power levels. Cell towers are significant electricity consumers, so improved efficiency reduces operators' hefty utility bills.

Savings of just a few percentage points make an impact at scale.

Additionally, thermal management is pivotal to dissipating intense internal heat that degrades amplifiers over time. Packaging solutions that extend component lifetimes ultimately minimise tower maintenance costs.

Furthermore, regulatory compliance regarding spurious emissions is imperative. By containing out-of-band noise, we ensure no disruption to nearby wireless services sharing the spectrum.

Maintaining broad coverage areas involves more than blindly maximising power. Responsible amplification adheres to emissions regulations, efficiency goals, linearity requirements, and reliability standards over long-term operation.

RF Power Amplifiers for 5G Networks

As we continue marching towards full 5G realisation, innovations in RF power amplification progress in lockstep. Companies are actively engineering new amplifier models optimised for emerging 5G frequency bands like 28 GHz and 39 GHz.

These bands open enormously wider chunks of the spectrum. In turn, maintaining flawless linear amplification is crucial to reap 5 G's promised multi-Gbps speeds without distortion.

These ultra-wideband amplifiers will transmit complex modulation schemes critical to next-gen throughput.

Additionally, shifting higher up the spectrum allows individual antenna elements to be packed tighter into dense arrays. Massive MIMO base stations are thus easier to construct using these higher 5G frequencies.

But powering thousands of antenna components per array site consumes immense power. So, wringing every bit of efficiency from power amplifiers, even in dense configurations, is pivotal.

Engineering teams continue pushing the boundaries. They explore new circuit techniques to strike an optimal balance of efficiency and linearity as 5G deployment accelerates worldwide.

While small components, innovations in RF power amplifiers pace the rollout of faster connectivity and expanded capacity through 5 G's flexible infrastructure.

Conclusion

RF power amplifiers take transmission signals and amplify them cleanly to reach every user across miles of geography. Specialised designs maintain signal fidelity and efficiency depending on coverage objectives and 3G/4G/5G waveforms.

Whether reviewing basic amplifier attributes or diving into architectural implementation tradeoffs between LDMOS, GaN and GaAs technologies – expertise is required to continually balance critical considerations across rapid network advancement.

As we migrate networks to bands like 28 GHz and 39 GHz, RF innovation again takes centre stage – delivering high-capacity 5G speeds to densely configured massive MIMO architectures through next-generation power amplifiers purpose-built for the task.

Clearly, RF power amplification forms a linchpin in the incredible progress of wireless infrastructure, radically transforming how modern society connects.

Although RF amplifiers are just a single functional block among many, advancements here underwrite access, performance and possibility expansions across the platforms that power our digital lives.

The next time your video call, cloud app or self-driving ride depends on uninterrupted, unimagined wireless connectivity – take a moment to appreciate the power amplifiers performing their crucial role behind the scenes!
